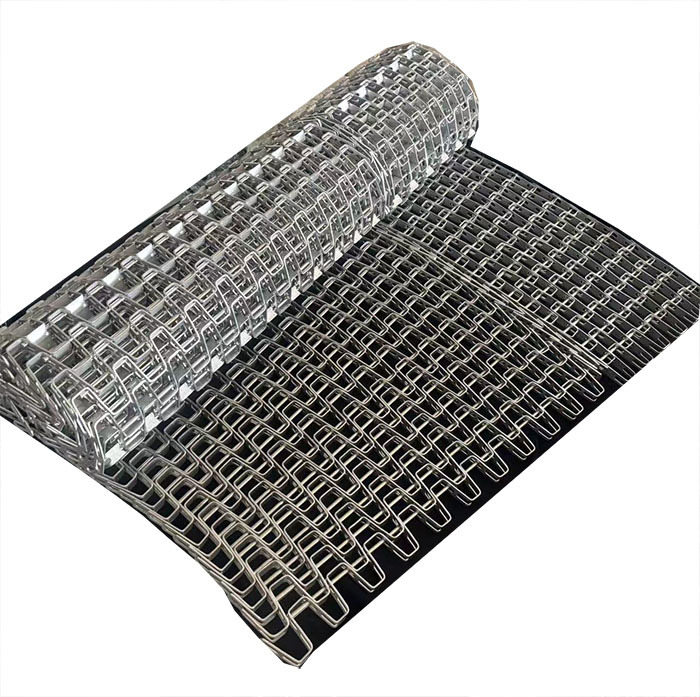

Stainless Steel Honeycomb Conveyor Belt for Food Freezing

Name: Stainless Steel Honeycomb Conveyor Belt for Food Freezing
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: zora250214
Price: 76.00 USD
Availability: InStock

Product Details

Place of Origin: hebei

Brand Name: comesh

Certification: FDA

Model Number: zora250214

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD67.0~USD86.0

Packaging Details: wooden box 180*120*65cm

Delivery Time: 20days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 50meters 15days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                stainless steel honeycomb conveyor belt, food freezing conveyor belt, metal honeycomb conveyor belt


Product Name:	Honeycomb Conveyor Belt For Food Cooling And Freezing	Keyword:	Honeycomb Conveyor Belts
Common material:	304/316/316L Stainless Steel	Wire Type:	Round,Flat
Side Process:	Welding,With Chain	Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club	Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm	Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized	Speed:	Adjustable
Surface Treatment:	Polishing	Technique :	Welding
Color:	Silver	Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Name:	Honeycomb Conveyor Belt For Food Cooling And Freezing
Keyword:	Honeycomb Conveyor Belts
Common material:	304/316/316L Stainless Steel
Wire Type:	Round,Flat
Side Process:	Welding,With Chain
Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm
Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized
Speed:	Adjustable
Surface Treatment:	Polishing
Technique :	Welding
Color:	Silver
Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Description

Heat Resistant Metal Honeycomb Conveyor Belt for Freezing

Product Specifications

Attribute	Value
Product Name	Honeycomb Conveyor Belt For Food Cooling And Freezing
Common Material	304/316/316L Stainless Steel
Wire Type	Round, Flat
Side Process	Welding, With Chain
Load-bearing	50KG, 100KG ......
Application	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature	Single Row, Double Row
Width	200 mm to 4000 mm (max width limited by laser cutting machine capacity)
Baffle	Can be added on side or middle part
Rod Diameter	1-20mm or customized
Speed	Adjustable
Surface Treatment	Polishing
Technique	Welding
Color	Silver

Product Description

Stainless steel honeycomb conveyor belt is a friction-driven machine that transports materials continuously. It forms a complete material conveying flow from initial feeding to final discharging point, capable of handling both bulk materials and finished products.

Also known as flat wire conveyor belt, the honeycomb belt is constructed of cross rods and flat metal strips with welded rings at the sides. Available in various dimensions with different pitches and material specifications, it can be customized with side plates or flights as needed.

Key Features

Belt edge has no catch points or welds
Twice the life of competitive belts
No special tools required for installation
Positive driven for excellent belt tracking
Up to 81% open area for excellent flow through
Allows for tight transfers
Available up to 150 inches wide
High strength-to-weight ratio
Welded button edge or clinched edge options
Flat carrying surface
Easy to clean and install

Applications

Food Processing: Transport of packaged goods, meat, poultry, and baked products with hygienic design
Beverage Industry: Bottling lines handling both empty and filled bottles with smooth transitions
Cold Chain Logistics: Refrigerated environments for perishable goods with temperature control

Technical Specifications

Product Name	Stainless Steel Honeycomb Conveyor Belts For Bread production Systems
Material	Stainless steel, carbon steel or customized
Plate Thickness	0.8mm to 5mm (customizable based on load requirements)
Width	200mm to 4000mm (max width limited by laser cutting capacity)
Supporting Roller	Available for additional load capacity (recommended for wider belts)

Material Temperature Resistance

Material	Maximum Operating Temperature (°C)
Carbon Steel	550
Galvanised Mild Steel	400
Chrome Molybdenum	700
304 Stainless Steel	750
321 Stainless Steel	750
316 Stainless Steel	800
316L Stainless Steel	800
314 Stainless Steel	1120

Edge Types

Honeycomb belt with welded edges
Honeycomb belt with Chain edges
Honeycomb belt with clinched edges

Frequently Asked Questions

Q1. Are you a factory or trading company?

A: We are both factory and trade company

Q2. How to place an order?

A: Orders can be placed on Alibaba or through signed contract. 30% deposit required before manufacturing customized products.

Q3. What about payment terms?

A: We accept T/T, L/C, Western Union, Escrow, Paypal, and other payment methods.

Q4. What about the shipping date?

A: Standard products ship within 15 days after contract confirmation. Customized products may require additional time.
