Highlight:
304 chocolate conveyor belt
, 304 ss conveyor belt
, chocolate ss conveyor belt
Common Material: |
Stainless Steel 304 316 316L |
Wire Diameter: |
3mm,4mm,5mm,6mm,Customization |
Usage: |
Baking, Battering, Breading, Cooling, Enrobing, Transport, Cooking, Transport, Heating, Drying, Coating, Drainage, Freezing, Frying, Dough Rolling, Shrink Wrapping, Sterilisation, Soldering, Turning, Crumbing, Preparation, Sieving |
Special Specification: |
Can Be Customed |
Appliable Industries: |
Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops |
Width: |
1200mm,1500mm,Customization |
Length: |
Customized |
Hole Size: |
Customized |
Mesh Size: |
Customized |
Weave Style: |
Bending |
Hole Shape: |
Customized |
Technique : |
Woven Wire Mesh |
Color: |
Silver |
Tensile Strength: |
Strong |
Delivery Time: |
15-25Days After Receiving Your Payment |
Packing: |
Wooden Case And According Your Request |

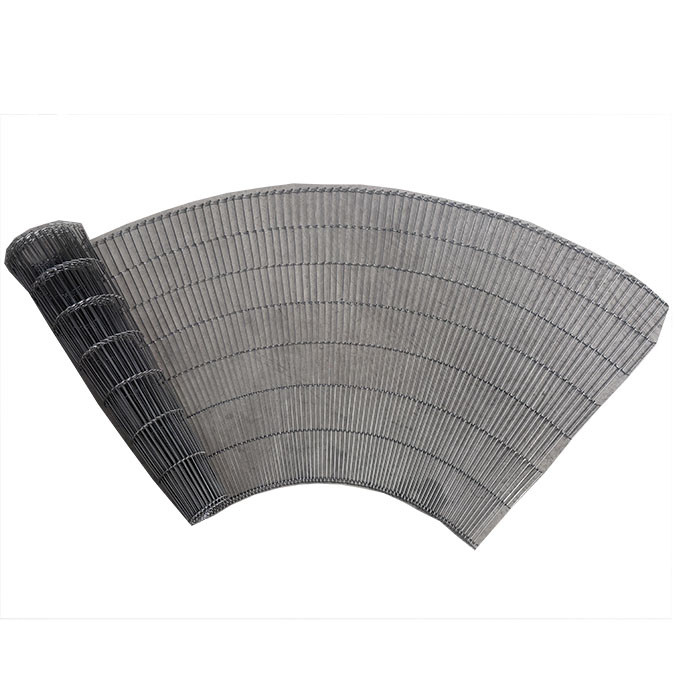

High Temperature Stainless Steel 304 Chocolate Conveyor Belt For Cooling Baking
Chocolate Conveyor Belt description
The Chocolate Coating Conveyor Belts are frequently used in installations whereby food products undergo a certain process. You could thereby think of Garden / steaming / cooking / baking / frying / grilling but also of draping with chocolate or sprinkling with pips and/or seeds. Chocolate Coating Conveyor Belts are furthermore frequently used for take-over sets whereby products move from one installation / transporter to the other.

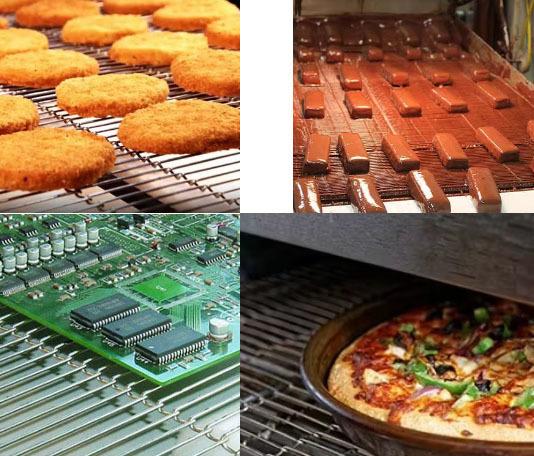

Chocolate coating conveyor belts are used in the food industry for the production of the following products: small dessert, fish products, pizza, vegetables, bread, flour, cakes, meat, candy, potatoes, biscuits, chocolate, nuts, and fruit.
Chocolate Conveyor Belt Specifications
| Product name |
Stainless Steel Enrober Chocolate Coating Wire Mesh Conveyor Belt |
| Material |
Stainless steel 304 316, carbon steel or as your request |
| Wire diameter |
0.9 to 5mm. Special can be produced according to your request. |
| Pitch |
4.24mm - 20.32mm. Other pitches can be customized. |
Belt types of ladder conveyor belt

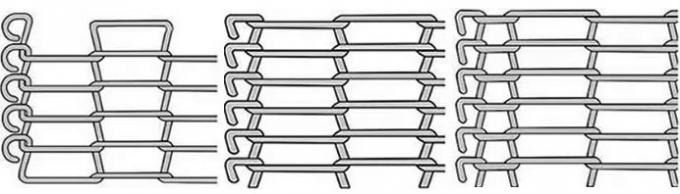

Edge types of z type belt conveyor
The chocolate coating conveyor belt can be formed into different edge types, which can suit different equipment and driven types. You can choose the perfect one type for you.
● With a C-shaped Edge, reduce the ratio of catching and tangling by the belt edge.
● With a Single Loop Edge, the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above
● With a Double Loop Edge, supplied for enrober belts.
Chocolate Conveyor Belt Feature
-
Ladder-like Mesh Design
-
Open Mesh Configuration, Large opening area up to 86% to promote air circulation.
-
Durability and Strength
-
Flexibility and Conformity
-
Smallest diameter end rolls and drive rolls.
-
No-slip, positive driven for accurate tracking.
-
Easy Cleaning and Maintenance
-
Lightweight, easy to transport and install.
-
Hygienic design, Easy to clean, clean-in-place capability
-
Very low belt mass for improved operating efficiency
-
C-CureEdge™ available on a range of selected specifications
