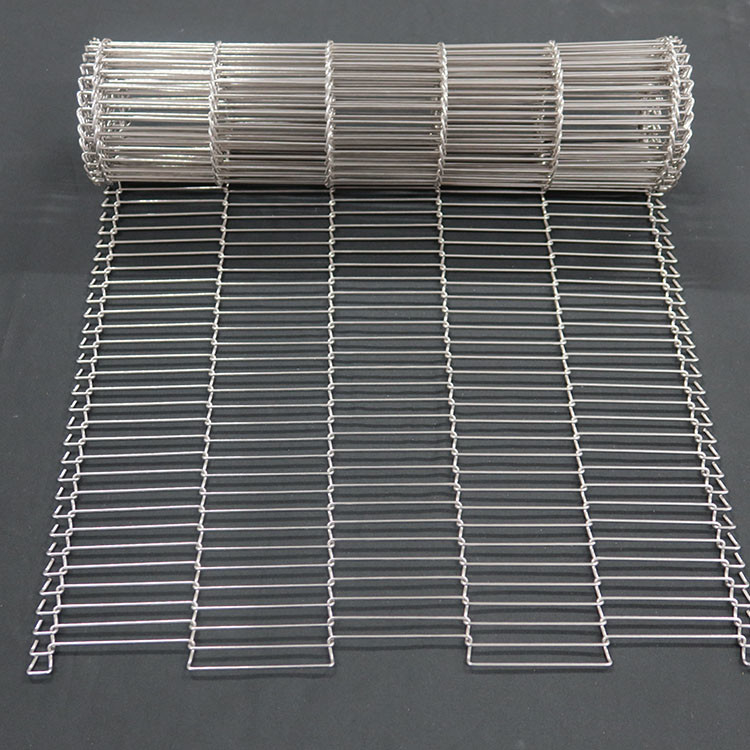

Stainless Steel Wire Mesh Conveyor Belts For Food Biscuits Industries
Wire Conveyor Belts Description
Our company has more than 20 years experience,with high quality stainless steel
raw material and advanced production technology,has established a long coopration
relationship with many countries.Welcome to your join.
Stainless Steel Wire Mesh Conveyor Belts For Food Biscuits Industries is most commonly used wire mesh belt for conveyor. Conveyor belt is used in many food processing applications and also in some industrial range, such as in glass, ceramic and metal working. We can customized as per the customer's request.
Wire Conveyor Belts specification
| Specifications of Conveyor Belts |
| Item |
Wire diameter |
Pitch |
Open area |
Edge type |
| (mm) |
(mm) |
(%) |
| FFCB-01 |
0.9 |
4.24 |
77 |
Single/ double |
| FFCB-02 |
0.9 |
5.64 |
82 |
Single/ double |
| FFCB-03 |
1 |
5.5 |
79 |
Single/ double |
| FFCB-04 |
1 |
5.6 |
79.5 |
Single/ double |
| FFCB-05 |
1.27 |
4.3 |
67 |
Single |
| FFCB-06 |
1.27 |
5.5 |
73 |
Single/ double |
| FFCB-07 |
1.27 |
6 |
76 |
Single/ double |
| FFCB-08 |
1.27 |
6.35 |
77 |
Single/ double |
| FFCB-09 |
1.27 |
7.26 |
80 |
Single/ double/ C-shape |
| FFCB-10 |
1.4 |
6.4 |
76 |
Single/ C-shape |
| FFCB-11 |
1.6 |
7.26 |
75 |
Single/ double/ C-shape |
| FFCB-12 |
1.83 |
12 |
81 |
Single |
| FFCB-13 |
1.83 |
12.7 |
82 |
Single/ C-shape |
| FFCB-14 |
2.08 |
9.6 |
75 |
Single/ C-shape |
| FFCB-15 |
2.35 |
12.7 |
78 |
Single/ C-shape |
| FFCB-16 |
2.35 |
20.32 |
85 |
Single |
| FFCB-17 |
2.8 |
12.7 |
72 |
Single/ C-shape |
| Note: Custom specification is available if you can't find the suitable size. |
Wire Conveyor Belts advantage
1.The wires are bent not only in horizontal direction,but also in vertical direction,so that the wire link belt can turn itself well even on a small transition edge,but only in one direction.
2.Large open area enables washing or drying of products on the woven belt
3.Straight running
4.Positive drive without creeping
5.Small contact with profuct
6.Light and easy to install
7.Easy to clean,do not blind itself
8.Very susceptible to damage,regular care and maintenace are needed
Wire Conveyor Belts application
1) Food biscuits industries: mesh belt, cooling injection machine mesh belt, flat bending machine mesh belt, chocolate coating machinemesh belt
2) Production of biscuit machinery at the same time, the spray egg machine mesh conveyer belt,ultra-thin energy-saving mesh belt imported machines.
3) Instant noodles and rice industry; Steamed mesh belt, Fried box, drying box, card wire cutting knife, the knife, knife, comb, fulcrum, molding box, etc.
4) Kinds of frozen food, dehydrated vegetables assembly line equipment with stainless steel flat chain. Chip chain. Conveyor chain, mesh belt, shaft, etc.
