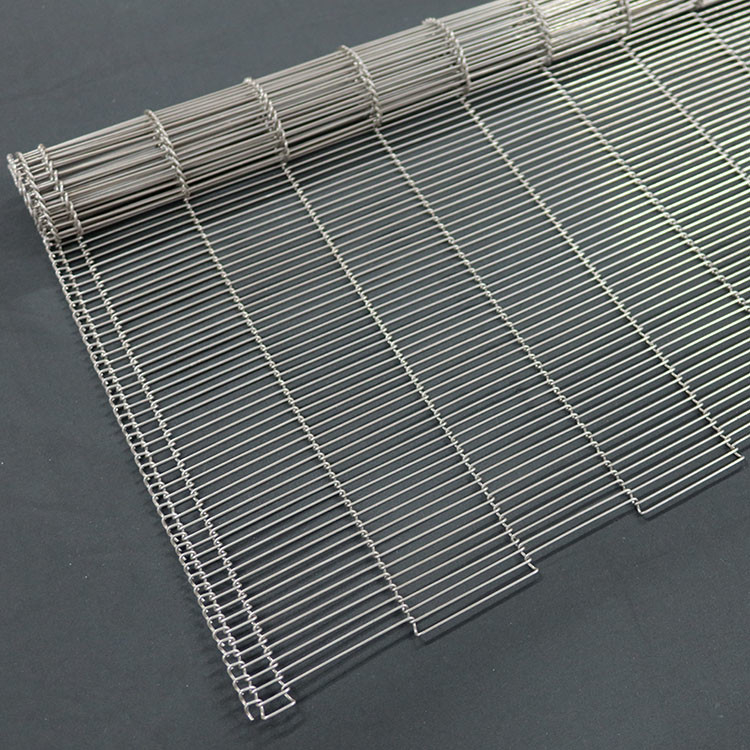

Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating

Name: Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: AIL250212
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COMESH

Model Number: AIL250212

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD2.0~USD8.0

Packaging Details: plywood box

Delivery Time: 5-8days

Payment Terms: T/T

Supply Ability: 100m per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                ladder wire mesh conveyor belt, food conveyor wire mesh belt, food wire mesh conveyor belt


Key Words:	Wire Mesh Conveyor Belt	Production Name:	Wire Conveyor Belts
Chain Pitch:	5mm To 15mm	Spiral Pitch:	2.4 Mm To 100 Mm
Pitch Of Spirals:	2.8mm To 40mm.	Surface:	Bright Silver
Width:	0.3 Mm To 1.5 Mm	Edge Treatment:	Polishing
Applications:	Food Grade

Key Words:	Wire Mesh Conveyor Belt
Production Name:	Wire Conveyor Belts
Chain Pitch:	5mm To 15mm
Spiral Pitch:	2.4 Mm To 100 Mm
Pitch Of Spirals:	2.8mm To 40mm.
Surface:	Bright Silver
Width:	0.3 Mm To 1.5 Mm
Edge Treatment:	Polishing
Applications:	Food Grade

Product Description

Food Grade Ladder Wire Conveyor Belt For Chocolate Coating

Wire Conveyor Belts Description

The conveyor mesh belts have the characteristics of good conveying function,anti-break and oxidization,high cold and hot expansion,even mesh opening and thickness,and steady running without deflection.SS304 Stainless steel balance weave convey mesh belt with steel chain we can supply big weave conveyor belt with 1m wide,1.1m wide,1.2m wide.....we support customization.

Inox stainless steel metal conveyor wire mesh belt Z type

conveyor systems price for pizza oven chocolate enrober bakery Conveyor belt with Z type is also called chocolate conveyor belt or ladder belt.

Wire Conveyor Belts specification

Specifications of Conveyor Belts
Item	Wire diameter	Pitch	Open area	Edge type
Item	(mm)	(mm)	(%)	Edge type
FFCB-01	0.9	4.24	77	Single/ double
FFCB-02	0.9	5.64	82	Single/ double
FFCB-03	1	5.5	79	Single/ double
FFCB-04	1	5.6	79.5	Single/ double
FFCB-05	1.27	4.3	67	Single
FFCB-06	1.27	5.5	73	Single/ double
FFCB-07	1.27	6	76	Single/ double
FFCB-08	1.27	6.35	77	Single/ double
FFCB-09	1.27	7.26	80	Single/ double/ C-shape
FFCB-10	1.4	6.4	76	Single/ C-shape
FFCB-11	1.6	7.26	75	Single/ double/ C-shape
FFCB-12	1.83	12	81	Single
FFCB-13	1.83	12.7	82	Single/ C-shape
FFCB-14	2.08	9.6	75	Single/ C-shape
FFCB-15	2.35	12.7	78	Single/ C-shape
FFCB-16	2.35	20.32	85	Single
FFCB-17	2.8	12.7	72	Single/ C-shape
Note: Custom specification is available if you can't find the suitable size.

Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating 0

Wire Conveyor Belts advantage

* Durable,long service life

* Withstand high temperatures

* Good air permeability

* Good stability
* Simple structure and easy cleaning

Wire Conveyor Belts application

1. Baking
2. Dough Rolling
3. Battering
4. Breading
5. Shrink Wrapping
6. Sterilization
7. Soldering
8. Architectural Mesh
9. Shuttling
10. Side Shifting
11. Collating
12. Crumbing
13. Searing
14. Glazing
15. Preparation
16. Sieving
17. Cooking
18. Heating
19. Drying
20. Cooling
21. Coating
22. Drainage
23. Freezing

Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating 1

Our Company

Food Grade Ladder Wire Mesh Conveyor Belt For Chocolate Coating 2
