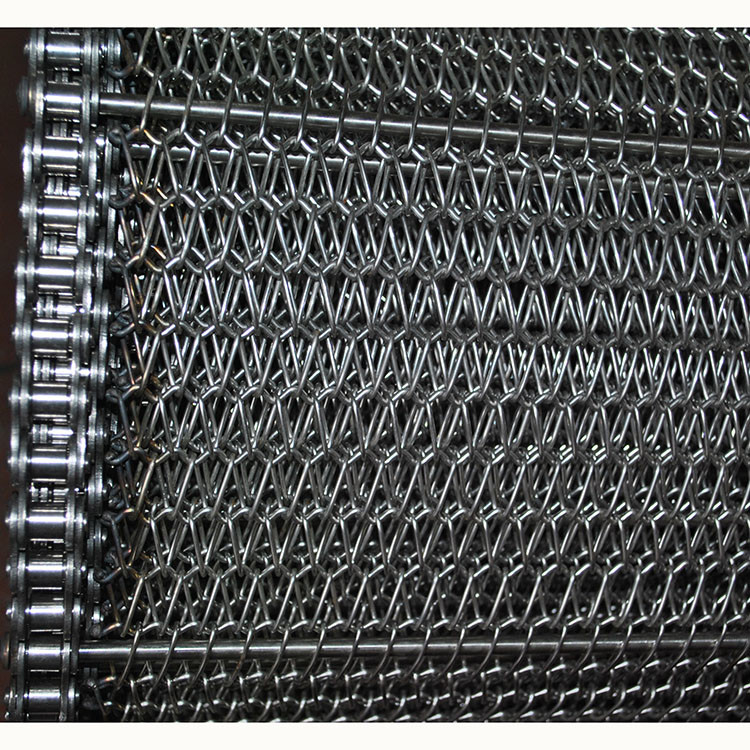

Stainless Steel Wire Mesh Spiral Conveyor Belts For Food
Wire mesh conveyor belt description
Architectural conveyor belt mesh is characterized by a round or flat spiral wire with looped edges.
They are very flexible and roll-able in length, the use has been found in the architecture.
The strong mesh possible designs for higher stresses such as for fixed or movable curtains and
elements outdoors.
Materials: stainless steel, bright steel, carbon steel
Width: Max: 4m.
Color: Grape purple, bronze, antique brass, white silver.
Weaving method: conventional weave, balanced weave, double balanced weave, rod reinforced, duplex weave
Wire mesh conveyor belt specification
| Balanced Weave Conveyor Belts specifications |
| Item No. |
Spiral wire pitch |
Cross rod pitch |
Spiral wire diameter |
Cross wire diameter |
| mm |
mm |
mm |
mm |
| BWCB-001 |
4 |
4 |
0.9 to 1.2 |
1.2 to 1.6 |
| BWCB-002 |
5 |
6.4 |
0.9 to 1.2 |
1.2 to 1.6 |
| BWCB-003 |
5 |
5 |
0.9 to 1.6 |
1.2 to 1.6 |
| BWCB-004 |
6 |
6 |
0.9 to 1.6 |
1.2 to 1.6 |
| BWCB-005 |
6 |
8 |
0.9 to 1.2 |
1.2 to 1.6 |
| BWCB-006 |
6 |
10 |
0.9 to 1.6 |
1.2 to 1.6 |
| BWCB-007 |
8 |
12 |
1.2 to 2.0 |
1.2 to 2.5 |
| BWCB-008 |
8 |
13 |
1.2 to 2.0 |
1.2 to 2.5 |
| BWCB-009 |
8 |
15 |
1.2 to 2.0 |
1.2 to 2.5 |
| BWCB-010 |
11 |
15 |
1.2 to 2.0 |
1.2 to 2.5 |
| BWCB-011 |
11 |
20 |
1.6 to 3.0 |
1.6 to 3.0 |
| BWCB-012 |
11 |
25 |
1.6 to 3.0 |
1.6 to 3.0 |
| BWCB-013 |
11 |
27 |
1.6 to 3.0 |
1.6 to 3.0 |
| BWCB-014 |
15 |
20 |
1.6 to 3.0 |
1.6 to 3.0 |
| BWCB-015 |
15 |
25 |
1.6 to 3.0 |
1.6 to 3.0 |
| BWCB-016 |
22 |
23 |
1.6 to 3.0 |
1.6 to 3.0 |
| BWCB-017 |
22 |
33 |
1.6 to 3.0 |
2.0 to 4.0 |
| Note: 1. If flat wire, please give us cross section. |
| 2. Custom specification is available if you can't find the suitable size. |
Wire mesh conveyor belt Features
- Smooth surface, attractive appearance, various of shape.
-- Durable and long service life .
-- Corrosion resistance, wear resistance.
-- Anti-oxidation, not easy to deformation.
-- Durable and other special functions.
-- Tensile strength, permeability is good.
-- Artistic effect , fashionable design as building facade
Wire mesh conveyor belt Applications
1. Annealing Oven Conveyor Belts
2. Cooker Conveyor Belts
3.Fryer Conveyor Belts
4. Drying Conveyor Belts
5. Cooling Conveyor Belts
6. Washing Conveyor Belts
7. Take over Conveyor Belts
8. Baking ovens
9. Biscuit ovens
10. Glass ovens
11. Decoration ovens
12.Hardening ovens
