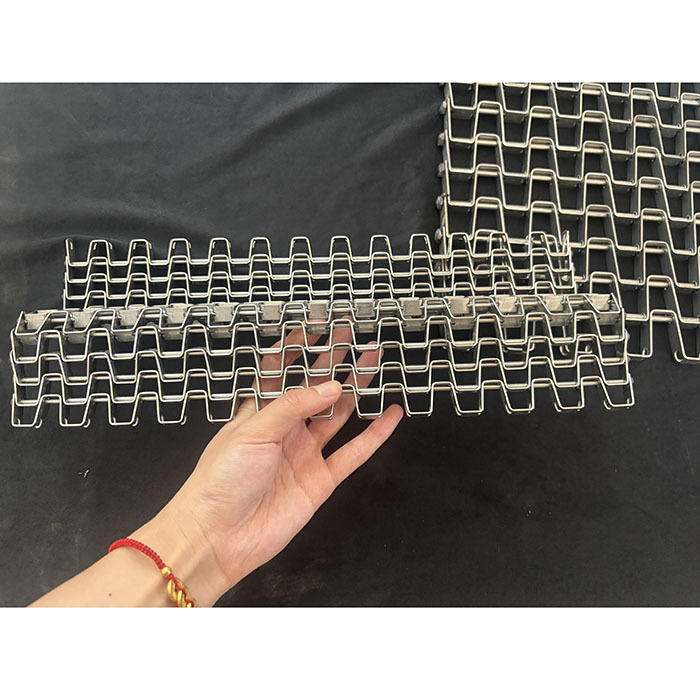

Stainless Steel Honeycomb Conveyor Belt for Food Processing

Name: Stainless Steel Honeycomb Conveyor Belt for Food Processing
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: zora250214
Price: 76.00 USD
Availability: InStock

Product Details

Place of Origin: hebei

Brand Name: comesh

Certification: FDA

Model Number: zora250214

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD67.0~USD86.0

Packaging Details: wooden box 180*120*65cm

Delivery Time: 20days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 50meters 15days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                stainless steel honeycomb conveyor belt, food processing conveyor belt, metal honeycomb conveyor belt


Product Name:	Honeycomb Conveyor Belt For Food Cooling And Freezing	Keyword:	Honeycomb Conveyor Belts
Common material:	304/316/316L Stainless Steel	Wire Type:	Round,Flat
Side Process:	Welding,With Chain	Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club	Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm	Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized	Speed:	Adjustable
Surface Treatment:	Polishing	Technique :	Welding
Color:	Silver	Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Name:	Honeycomb Conveyor Belt For Food Cooling And Freezing
Keyword:	Honeycomb Conveyor Belts
Common material:	304/316/316L Stainless Steel
Wire Type:	Round,Flat
Side Process:	Welding,With Chain
Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm
Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized
Speed:	Adjustable
Surface Treatment:	Polishing
Technique :	Welding
Color:	Silver
Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Description

Honeycomb Conveyor Belt For Food Cooling And Freezing

Product Specifications

Attribute	Value
Product Name	Honeycomb Conveyor Belt For Food Cooling And Freezing
Common Material	304/316/316L Stainless Steel
Wire Type	Round, Flat
Side Process	Welding, With Chain
Load-bearing	50KG, 100KG (customizable)
Application	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature	Single Row, Double Row
Width	200 mm to 4000 mm (max width limited by laser cutting machine)
Baffle	Can be added on side or middle part
Rod Diameter	1-20mm or customized
Speed	Adjustable
Surface Treatment	Polishing
Technique	Welding
Color	Silver

Product Description

Honeycomb shaped conveyor belts (also known as Great Wall shaped or horseshoe shaped conveyor belts) consist of metal rods and flat metal chain links, forming a large, flat metal surface with excellent air circulation performance. These belts are easy to clean, maintain, and operate smoothly.

The honeycomb belt is constructed of cross rods and flat metal strips with welded rings at the sides. Available in various dimensions with different pitches and material specifications, these belts can be customized with side plates or flights as needed.

Key Features

Large open area for excellent air circulation
Optional side plates, reinforcing links and flights
Strong edge prevents snagging on conveyor protrusions
Low maintenance requirements
Suitable for friction or sprocket drive systems
Anti-slipping design for long service life
Durable structure prevents deformation under heavy loads
Custom sizes available with expert recommendations

Applications

Food Processing: Transport of packaged goods, meat, poultry, and baked products with hygienic, easy-to-clean surfaces
Beverage Industry: Efficient handling of empty and filled bottles in bottling lines
Cold Chain Logistics: Temperature-controlled transport of perishable goods in refrigerated environments

Technical Specifications

Please refer to the following drawing for dimensional specifications:

Product Name	Stainless Steel Honeycomb Conveyor Belts For Bread Production Systems
Material	Stainless steel, carbon steel or as requested
Plate Thickness	0.8mm to 5mm (customizable based on load requirements)
Width	200mm to 4000mm (limited by laser cutting capacity)
Supporting Roller	Available for additional load capacity (recommended for wider belts)

Material Temperature Ratings

Material	Maximum Operating Temperature (°C)
Carbon Steel	550
Galvanised Mild Steel	400
Chrome Molybdenum	700
304 Stainless Steel	750
316 Stainless Steel	800
314 Stainless Steel	1120

Edge Types

Honeycomb belt with welded edges
Honeycomb belt with chain edges
Honeycomb belt with clinged edges

Frequently Asked Questions

Q1. Are you a factory or trading company?

A: We are both factory and trade company.

Q2. How to place an order?

A: Orders can be placed through Alibaba or by signed contract. 30% deposit required before manufacturing customized products.

Q3. What about payment terms?

A: We accept T/T, L/C, Western Union, Escrow, Paypal, and other payment methods.

Q4. What about the shipping date?

A: Standard products ship within 15 days after contract confirmation. Custom products may require additional time.
