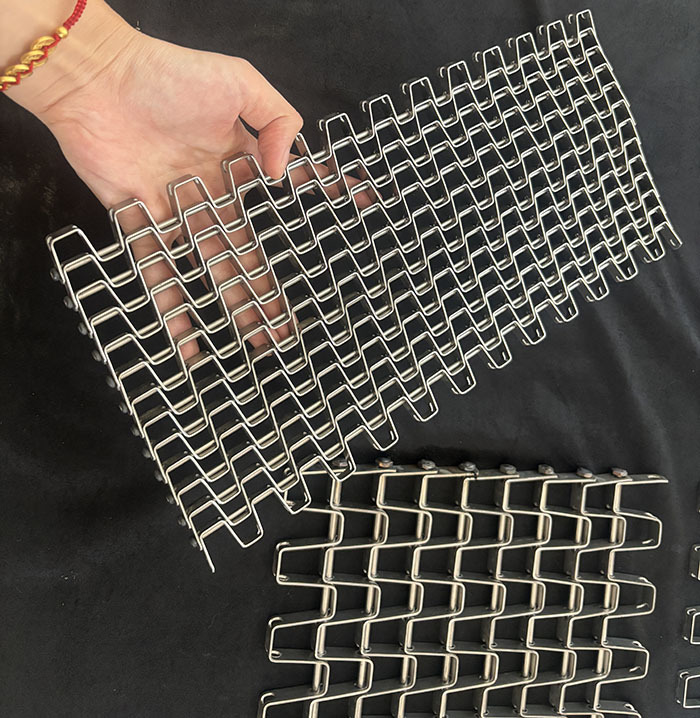

Honeycomb Conveyor Belt For Food Cooling And Freezing
Product Specifications
| Attribute |
Value |
| Product Name |
Honeycomb Conveyor Belt For Food Cooling And Freezing |
| Common Material |
304/316/316L Stainless Steel |
| Wire Type |
Round, Flat |
| Side Process |
Welding, With Chain |
| Load-bearing |
50KG, 100KG (customizable) |
| Application |
Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club |
| Feature |
Single Row, Double Row |
| Width |
200 mm to 4000 mm (max width limited by laser cutting machine) |
| Baffle |
Can be added on side or middle part |
| Rod Diameter |
1-20mm or customized |
| Speed |
Adjustable |
| Surface Treatment |
Polishing |
| Technique |
Welding |
| Color |
Silver |
Product Description
1. Product application scope: flat conveying of quick freezing and baking machinery, screw conveying, cleaning, sterilization, drying, cooling, steaming and other glass machinery of food machinery, annealing, baking, bottle conveying, etc.
2. The transportation of various assembly lines.
3. Food processing industry, dehydrated vegetables, quick-frozen food, single-freezer pre-processing mesh belt, chain mesh.
4. Powder metallurgy, metal heat treatment, quenching, sintering, brazing, roasting, bright, blackening, bearing, carburizing high temperature furnace mesh belt, baffle mesh belt, coating drying line conveyor mesh belt, foam nickel reduction production line Mesh belt, washing machine, hoist, dryer, dryer, curing oven mesh belt and other conveying process equipment.
Key Features
- Large open area for excellent air circulation
- Optional side plates, reinforcing links and flights
- Strong edge prevents snagging on conveyor protrusions
- Low maintenance requirements
- Suitable for friction or sprocket drive systems
- Anti-slipping design for long service life
- Durable structure prevents deformation under heavy loads
- Custom sizes available with expert recommendations
Applications
- Food Processing: Transport of packaged goods, meat, poultry, and baked products with hygienic, easy-to-clean surfaces
- Beverage Industry: Efficient handling of empty and filled bottles in bottling lines
- Cold Chain Logistics: Temperature-controlled transport of perishable goods in refrigerated environments
Technical Specifications
Please refer to the following drawing for dimensional specifications:
| Product Name |
Stainless Steel Honeycomb Conveyor Belts For Bread Production Systems |
| Material |
Stainless steel, carbon steel or as requested |
| Plate Thickness |
0.8mm to 5mm (customizable based on load requirements) |
| Width |
200mm to 4000mm (limited by laser cutting capacity) |
| Supporting Roller |
Available for additional load capacity (recommended for wider belts) |
Material Temperature Ratings
| Material |
Maximum Operating Temperature (°C) |
| Carbon Steel |
550 |
| Galvanised Mild Steel |
400 |
| Chrome Molybdenum |
700 |
| 304 Stainless Steel |
750 |
| 316 Stainless Steel |
800 |
| 314 Stainless Steel |
1120 |
Edge Types
- Honeycomb belt with welded edges
- Honeycomb belt with chain edges
- Honeycomb belt with clinged edges
Frequently Asked Questions
Q1. Are you a factory or trading company?
A: We are both factory and trade company.
Q2. How to place an order?
A: Orders can be placed through Alibaba or by signed contract. 30% deposit required before manufacturing customized products.
Q3. What about payment terms?
A: We accept T/T, L/C, Western Union, Escrow, Paypal, and other payment methods.
Q4. What about the shipping date?
A: Standard products ship within 15 days after contract confirmation. Custom products may require additional time.
