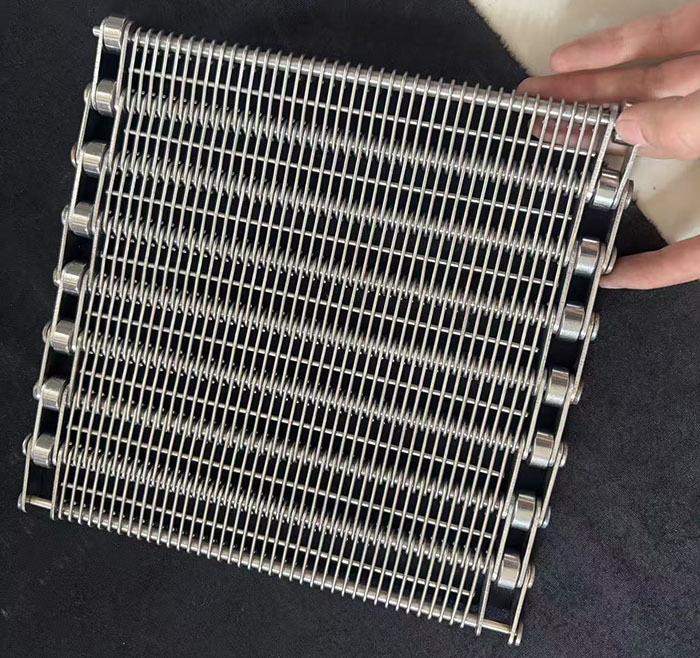

304 Stainless Steel Honeycomb Conveyor Belt 200-4000mm Width

Name: 304 Stainless Steel Honeycomb Conveyor Belt 200-4000mm Width
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: zora250214
Price: 76.00 USD
Availability: InStock

Product Details

Place of Origin: hebei

Brand Name: comesh

Certification: FDA

Model Number: zora250214

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD67.0~USD86.0

Packaging Details: wooden box 180*120*65cm

Delivery Time: 20days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 50meters 15days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                304 stainless steel conveyor belt, honeycomb metal conveyor belt, wide width stainless steel belt


Product Name:	Honeycomb Conveyor Belt For Food Cooling And Freezing	Keyword:	Honeycomb Conveyor Belts
Common material:	304/316/316L Stainless Steel	Wire Type:	Round,Flat
Side Process:	Welding,With Chain	Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club	Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm	Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized	Speed:	Adjustable
Surface Treatment:	Polishing	Technique :	Welding
Color:	Silver	Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Name:	Honeycomb Conveyor Belt For Food Cooling And Freezing
Keyword:	Honeycomb Conveyor Belts
Common material:	304/316/316L Stainless Steel
Wire Type:	Round,Flat
Side Process:	Welding,With Chain
Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm
Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized
Speed:	Adjustable
Surface Treatment:	Polishing
Technique :	Welding
Color:	Silver
Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Description

Stainless Steel Conveyor Belt Metal Eye Link Wire Mesh Conveyor Belt

Eye Link Conveyor Belts, also named Wire Link Conveyor Belts, Eye-Flex Conveyor Belt, or Wire Loop Belt, are constructed from stainless steel or other alloys. These belts consist of interconnected eye links or modules joined with cross rods, creating a flat, stable surface ideal for demanding applications in food, chemical, pharmaceutical, and packaging industries.

Product Specifications

Attribute	Value
Product Name	Eye Link Conveyor Belts
Common Material	304/316/316L Stainless Steel
Wire Type	Round, Flat
Side Process	Welding, With Chain
Load-bearing	50KG, 100KG (customizable)
Application	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature	Single Row, Double Row
Width	200 mm to 4000 mm
Baffle	Can be added on side or middle part
Rod Diameter	1-20mm or customized
Speed	Adjustable
Surface Treatment	Polishing
Technique	Welding
Color	Silver

Product Applications

Flat conveying for quick freezing and baking machinery
Screw conveying, cleaning, sterilization, drying, cooling, and steaming processes
Food processing industry applications including dehydrated vegetables and quick-frozen foods
Powder metallurgy and metal heat treatment processes
Various assembly line transportation systems

Key Features

Large open area for excellent air circulation
Optional side plates, reinforcing links and flights
Strong edge prevents snagging on conveyor protrusions
Low maintenance requirements
Suitable for friction or sprocket drive systems
Anti-slipping design for long service life
Durable structure prevents deformation under heavy loads
Custom sizes available with expert recommendations

Industry Applications

Food Processing: Transport of packaged goods, meat, poultry, and baked products with hygienic, easy-to-clean surfaces
Beverage Industry: Efficient handling of empty and filled bottles in bottling lines
Cold Chain Logistics: Temperature-controlled transport of perishable goods in refrigerated environments

Technical Specifications

For customers who have purchased eye link conveyor belts before, please refer to the following drawing for quoting purposes. New customers can contact us for size recommendations based on specific usage requirements.

Material	Maximum Operating Temperature (°C)
Carbon Steel	550
Galvanised Mild Steel	400
Chrome Molybdenum	700
304 Stainless Steel	750
316 Stainless Steel	800
314 Stainless Steel	1120

Edge Types

Frequently Asked Questions

Q1. Are you a factory or trading company?

A: We are both factory and trade company.

Q2. How to place an order?

A: Orders can be placed through Alibaba or by signed contract. 30% deposit required before manufacturing customized products.

Q3. What about payment terms?

A: We accept T/T, L/C, Western Union, Escrow, Paypal, and other payment methods.

Q4. What about the shipping date?

A: Standard products ship within 15 days after contract confirmation. Custom products may require additional time.
